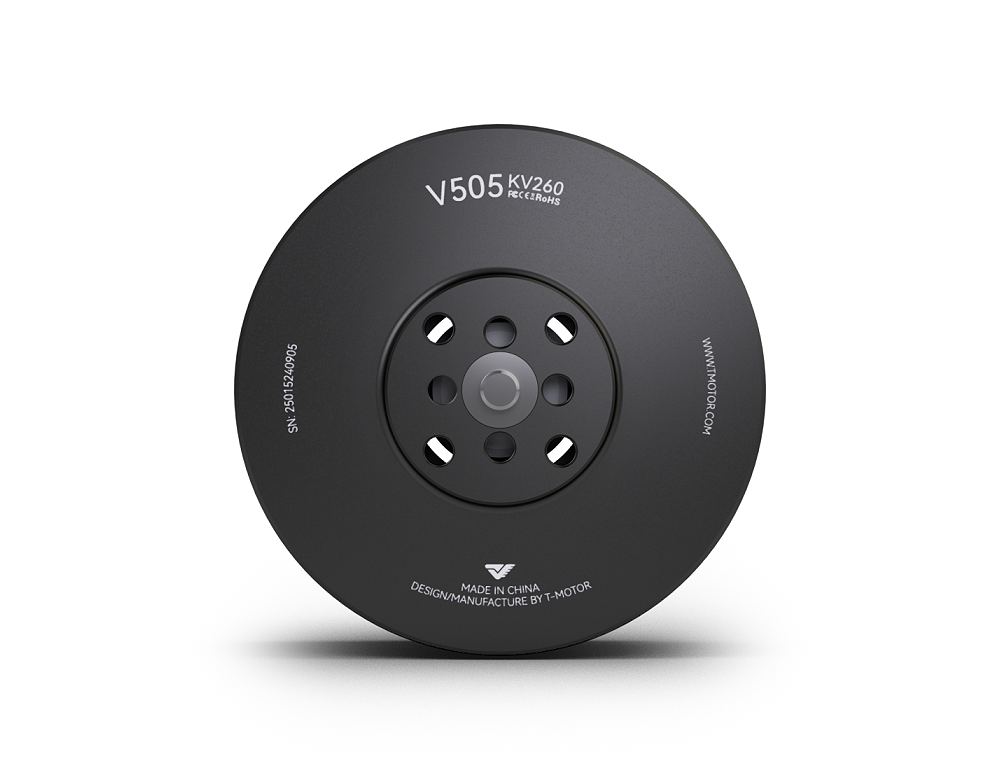

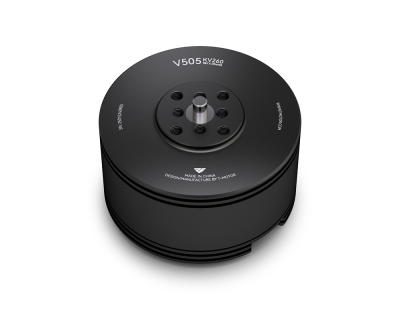

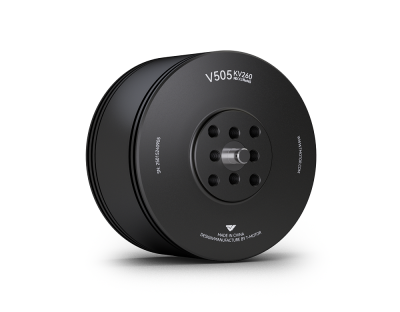

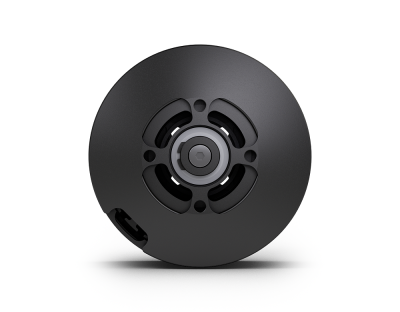

VL505 KV260 12S Vtol Drone Power

T Motor

Rp2,698,380

Available for pre-order

V-Series is the motors designed for VTOL power system, with abundant power, big pull-to-weight ratio, strong overload ability & environment adaptiveness features, guarding for every flight. Specification : Model No./ Kv : V505 KV260 Magnet Temperature Resistance Grade : Class E 150℃ Motor Size(mm) : Φ55.6*38.9 Lead(mm) : 16AWG*600 Stator Technology : Anti-rust treatment; 180°C high temperature-resisting coatings Enamelled Wires Temperature Resistance Grade : Class C 220℃ Configuration : 24N28P Coil Withdraw Voltage : 500V/5s Shaft Diameter(mm) : IN:6 OUT:4 Rotor Dynamic Balance Standard : ≤5mg Bearing Imported : 696ZZ IP Rating : IP45 KV Value : KV260 Battery (lipo)/Voltage Recommendation : 12S(4.2V/Sl)/42-52V Idle Current(18V) : 1.5A ESC Recommendation : FLAME 60A 12S Peak Current(A) : 52A/Continuous 180s Propeller Recommendation : P16*5.4/P17*5.8 Max. Power(W) : 2500W/Continuous 180s Motor Weight(g) : 215g (255g Weight (incl.cables)) Internal Resistance(mΩ) : 58 Package Weight(g) : 600g
