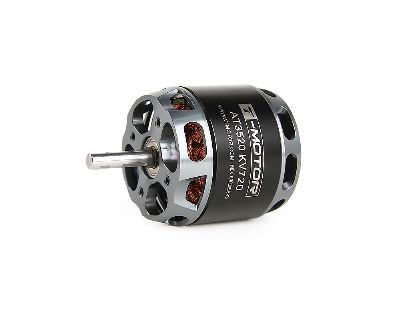

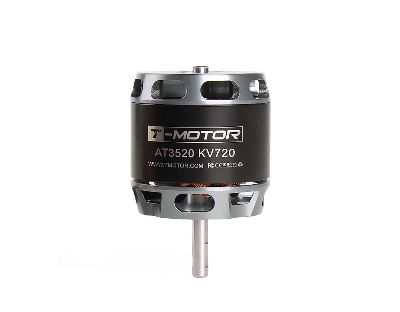

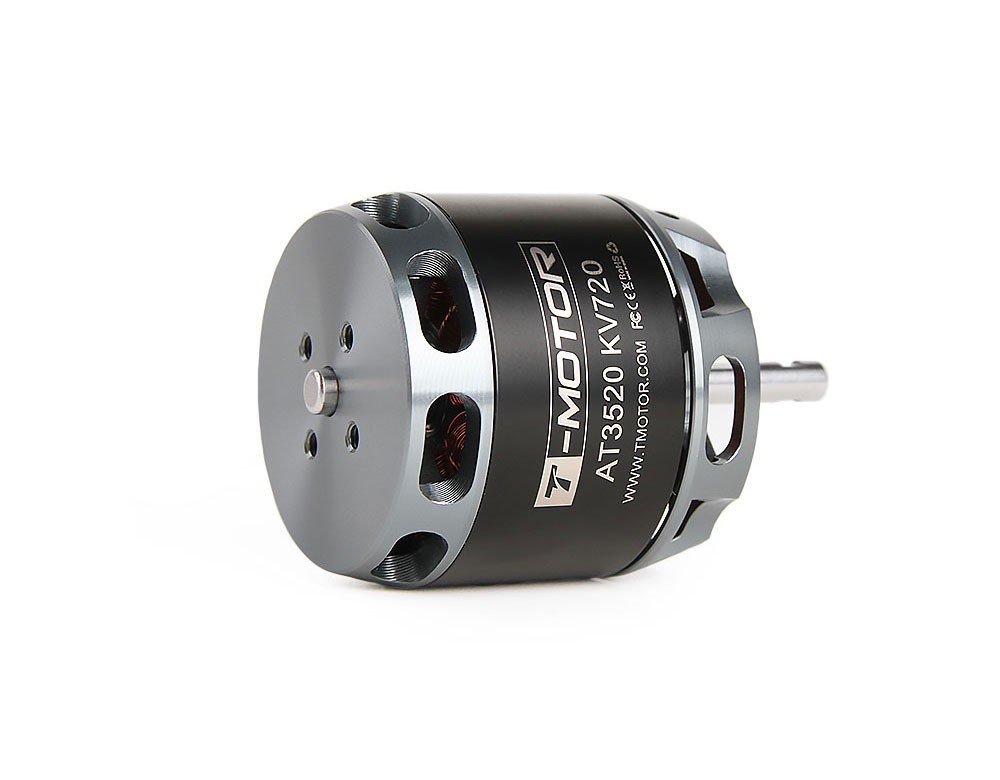

AT3520 Long Shaft Fixed Wing UAV Motor KV550

T Motor

Rp1,607,058

Available for pre-order

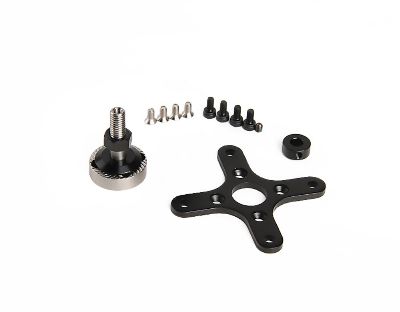

About T-MOTOR AT3520 Long Shaft Fixed Wing UAV Motor T-MOTOR AT3520 is a high-end motor suitable for supporting large outdoor UAV fixed wing aircraft of 1.8-2.0KG. BLDC motor features with excellent heat dissipation structure which ensures powerful flight.The motor weight is 221g and the biggest thrust is 4.3KG, It is support 4-6s lipos，recommend with T-Motor T13*6.5propeller and T-Motor AT 115A ESC AT3520 Highlights: 1.Incorporating a high quality triple bearing design via 28 series AT motors and above, T-Motor offers a variety of AT motor power selections with high quality mounting hardware for ease of application. 2.AT series of motors offer incredible levels of high temperature resistance under heavy power demand, offering excellent thermal capability with substantial overall durability. 3.The motor dissipates ultra-efficient heat via lateral cooling vents、 high torque curved magnets for optimal performance and three-bearing layout optimizes stability and efficiency. Packing List Includes: - 1x T-MOTOR AT3520 Motor - 1x Hardware pack Specification : Test Item Long Shaft : KV550 Weight (Incl. Cable) : 218g Motor Dimensions : Φ43*65mm Internal Resistance : 31mΩ Lead : Enameled Wire100mm Configuration : 12N14P Shaft Diameter : IN：5mm OUT：5mm Rated Voltage(Lipo) : 4-6S Idle Current(10V) : 1.1A Peak Current(180s) : 50A Max Power (180S) : 1100W Recommendation /
