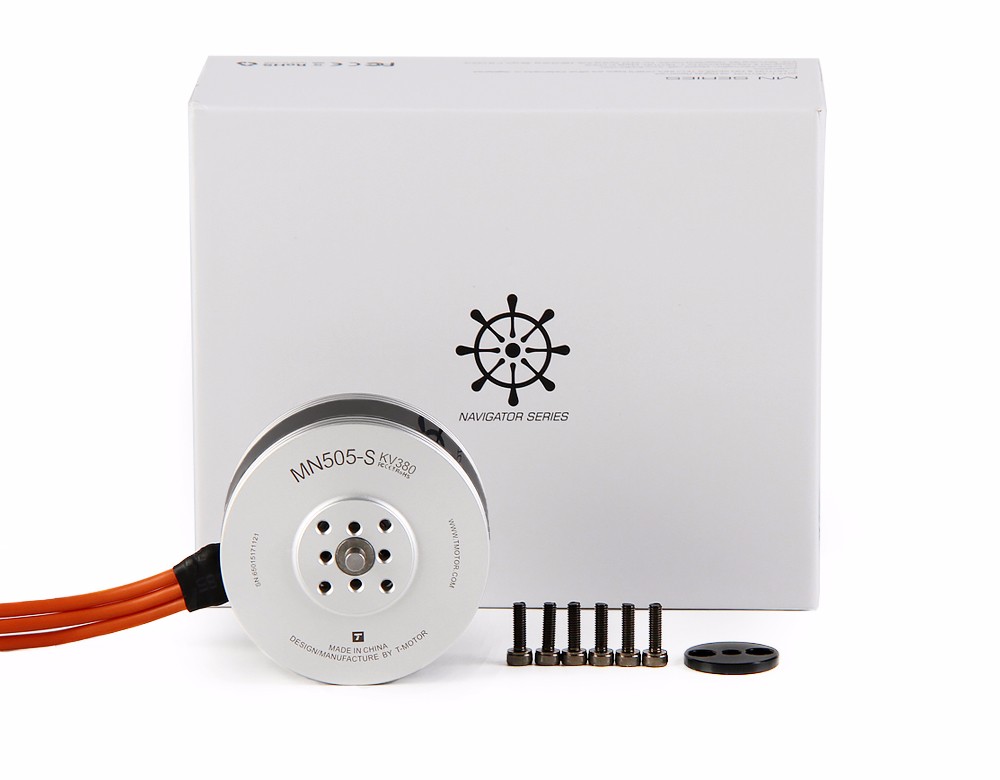

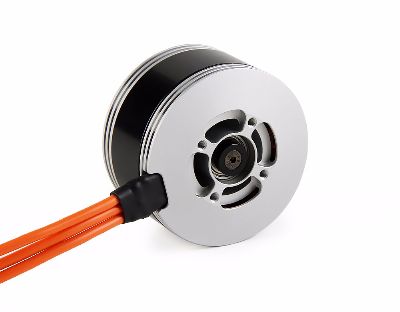

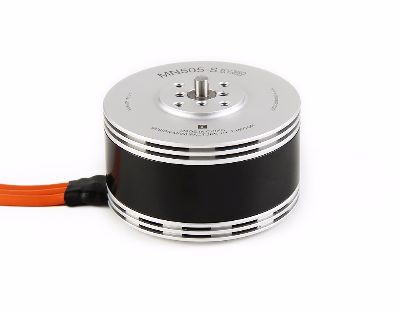

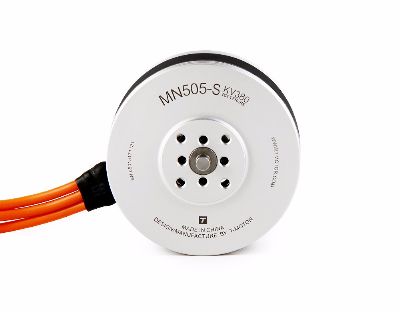

MN505-S IP45 Multirotor Fixed Wing UAV Motor KV380

Rp2,257,200

Available for pre-order

About T-MOTOR Navigator MN505-S Multirotor Fixed Wing UAV Motor KV38 T-Motor Navigator Waterproof MN505-S 380 KV is a premium motor engineered for marine applications like ROVs and AUVs. Built for durability and performance, it offers exceptional cooling, heat dissipation 10% better than standard motors, and high-temperature resistance. The centrifugal fan design ensures active cooling, while anti-corrosion, dust- and water-resistant features make it ideal for harsh underwater environments. With long service life and overload protection, the MN505-S delivers reliable power for demanding marine robotics. Navigator MN505-S Highlights: Max thrust: 6.6kg MTBF: About 1000hours Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion "Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings. Application Areas： Cargo Drones, Tethered, Mapping and Inspection. Packing List Includes: 1x T-MOTOR MN505 Motor KV380 1x Hardware pack Matching Guide: T-MOTOR P21*6.3 Prop / Flame 60A 12s v2 ESC / ALPHA 60A 6S ESC Specification : KV : 380 Rated Voltage ( Lipo ) : 6S Idle Current(15V) : 2.0A ESC Recommendation : FLAME 60A 12S Peak Current(180s) : 50A Propeller Recommendation : 17-18" Max.Power(180s) : 1200W Motor Weight (indl. Cable) : 225g Internal Resistance : 28mΩ Package Weight : 400g
