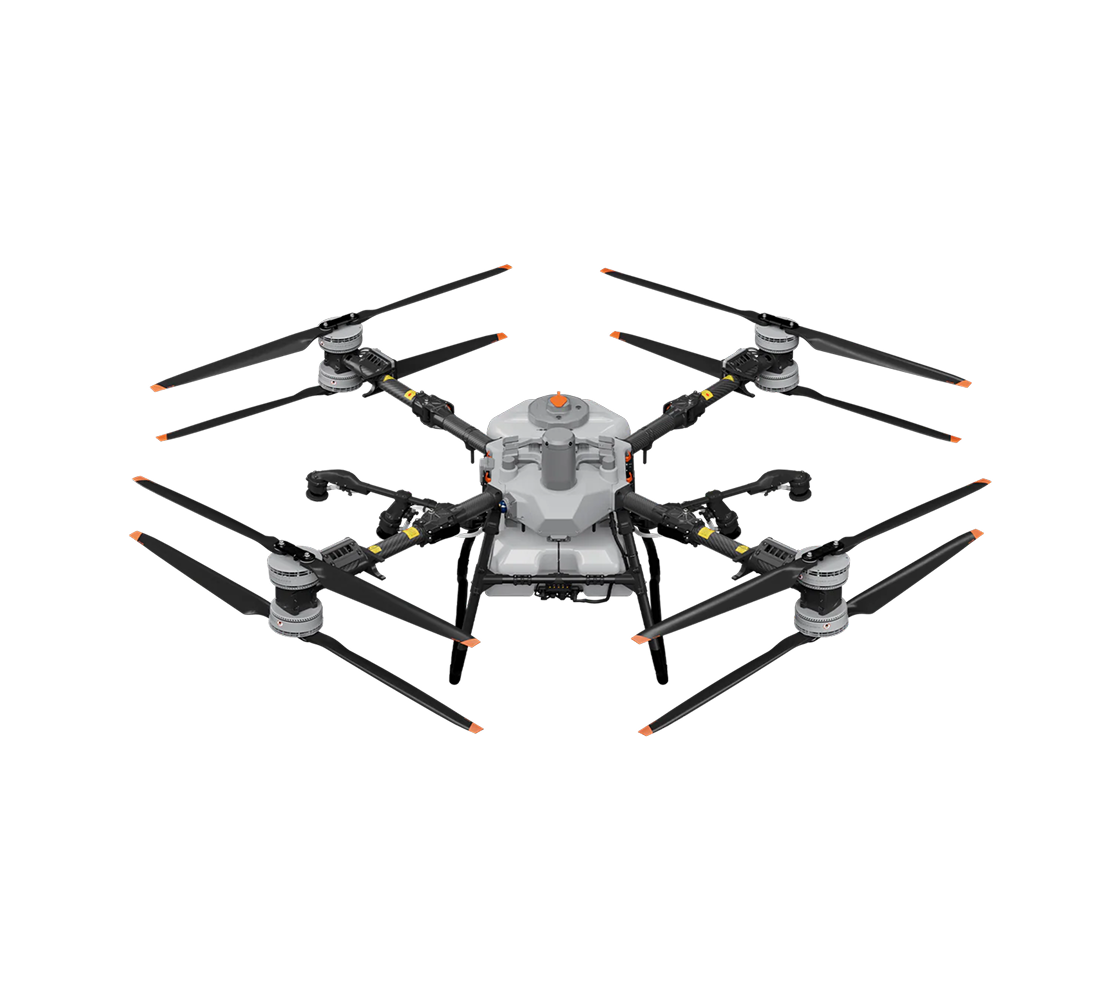

DJI Agras T100
Avirtech
Rp0
Pre-orderAvailable for pre-order
DJI Agras T100 Agricultural Drone is built for powerful and versatile performance, combining a 100 kg payload, smart flight control, and multi-mode spraying, spreading, and lifting capabilities.
View full specifications on Avirtech
Features
| 100KG Efficient Spraying | 100 L tank with dual atomization sprinklers, delivering up to 40 L/min flow rate and uniform droplets for precise and consistent wide-area coverage. |
|---|---|
| 150L Accurate Spreading | 150 L (100 kg) payload with 400 kg/min flow rate and 10 m width, ensuring fast and consistent granular distribution across large farmlands. |
| 100KG Stable Heavy-Lift System | 100 kg payload capacity with real-time weighing and auto balance control for stable, efficient spraying and spreading under heavy loads. |
| Comprehensive Perception | LiDAR, penta-vision, and millimeter-wave radars deliver precise obstacle detection and enhanced environmental awareness for safer automated flight. |
| Intelligent Terrain Navigation | Real-time LiDAR point clouds and AR overlays ensure accurate obstacle memory and smooth adaptive terrain following during missions. |
| Rapid Power System | DB2160 battery and D14000iE generator enable ultra-fast charging and long-duration field operation with minimal turnaround downtime. |
Performance

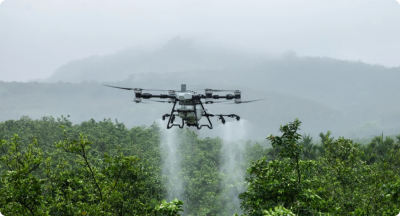

| Fruit Tree Spraying | Efficient spraying system ensures uniform coverage for tall fruit trees with precise droplet control and stable altitude. |
|---|---|

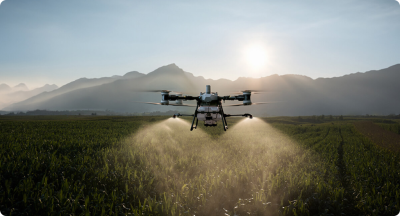

| Corn Field Application | Optimized flight routes and spray patterns deliver consistent results across wide cornfields with reduced chemical waste. |
| Material Spreading | High-capacity system supports granular fertilizers and seeds for even distribution and faster field coverage. |

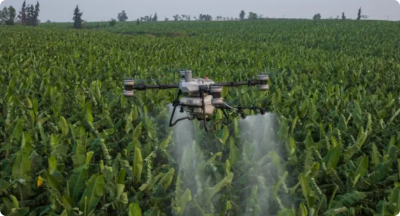

| Banana Plantation Spraying | Wide-angle spraying adapts to tall banana crops, providing full leaf coverage and reduced drift in humid areas. |
Technical
| Weight & MTOW | 75-90 kg - max take-off 165-177 kg |
|---|---|
| Wheelbase & dimensions | 2330 mm diagonal - 32203224975 mm |
| Hovering accuracy | 10 cm (RTK) - 0.6 m H / 0.3 m V |
| Flight radius / wind / temp | 2 km - <6 m/s - 0-40 C operating |
| Motor & propeller | 15516 mm - KV 60 - 62 CF 8 pairs |
| Spraying system | 100 L tank - 2/4 nozzles - 30-40 L/min |
| Spreading system 4.0 | 150 L (100 kg) - 400 kg/min - 10 m width |
| Lifting system | 80-100 kg load - 10-15 m cable len |
| Safety system 3.0 | LiDAR + Radar + Quad Vision - ≤60 m range |
| Remote controller TKPL 2 | 7 LCD 19201200 1400 nits - 3.8 h battery |
| Battery (DB2160) | 41 000 mAh / 52 V / 14.7 kg - 8-9 min charge |
