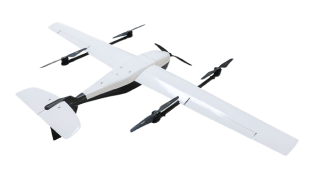

Aviro V3
Avirtech
Rp0
Pre-orderAvailable for pre-order
Highly mobile drone with versatile payloads, boasting up to 75 minutes flight time, and a robust, compact design for efficient field operations in various conditions.
View full specifications on Avirtech
Features
| Professional VTOL mapping, surveillance drone | Developed from years of VTOL drone expertise, excels in professional-grade long-range mapping and surveillance. |
|---|---|
| Superior performance in harsh environments | Streamlined aerodynamic design excels in handling complex requirements for large areas with harsh conditions. |
| Optimized for long-range surveillance missions | Combining VTOL and fixed-wing drone capabilities, Aviro V3 excels in long-range surveillance missions. |
| Enhanced mobility for challenging missions | 9 sqm take-off, detachable parts enable advanced surveillance drone mobility and quick deployment. |
| Versatile payloads, lightweight design | V3 features a strong yet lightweight carbon fiber body, capable of carrying various payloads. |
| High-resolution mapping, survey-grade accuracy | Supports mapping with high-resolution cameras and multi-band PPK system for accurate results. |
Performance

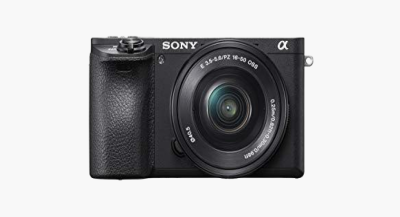

| Sony Alpha 6000 | Sony Alpha 6000 features a 24.3 megapixels APS-C sensor, delivering exceptional image quality in a compact design. |
|---|---|

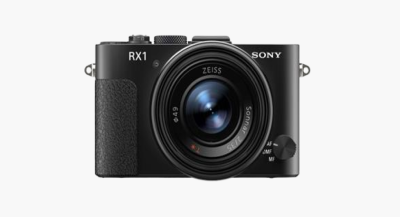

| Sony RX1RRI | Sony RX1RRI features a 35mm full-frame sensor with a remarkable 42.4 megapixels resolution. |

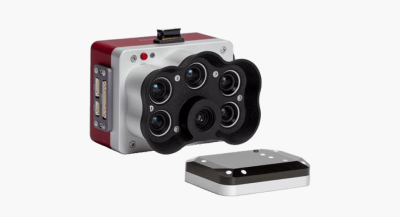

| MicaSense RedEdge-P | MicaSense RedEdge-P offers high-quality multispectral imaging for precise agricultural monitoring and analysis. |

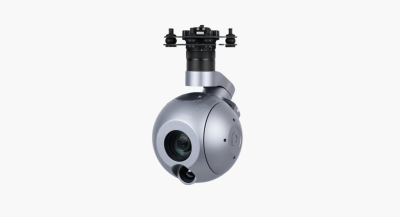

| Thermal camera, laser range finder, and AI tracking | 30X optical zoom, thermal camera, laser range finder, 3-axis gimbal, and Al tracking. |
| Thermal camera | Up to 40X zoom, thermal camera, super light weight 115gram, AI automatic object tracking military grade. |
Technical
| Wing span | 2.30 m |
|---|---|
| Length | 1.25 m |
| Flying speed | 18-20 m/s |
| Flight altitude | Up to 4500 m |
| Flying control range | Up to 30 km |
| Flight time | Up to 240 minutes |
| Wind resistance during cruising | Class 5, up to 10.7 m/s |
| Wind resistance during take off/landing | Up to 7 m/s |
| Take off/landing mode | Vertical take off & landing (VTOL) |
| Payload options | Single |
| Payload types | RGB, multi spectral, thermal, HD video |
| Max take off weight (MTOW) | 12.5 kg |
| PPK/RTK module | Available as option |
| Max payload weight | Up to 2.5 kg |
| Distance travel | Up to 280 km |
| Battery quantity/type | Dual 30.000 mAh 6s solid state |
| Operating temperature | -10 deg C to 40 deg C |
| Storage | Backpack-type carrying box |
