Aviro D20
Avirtech
Rp0
Pre-orderAvailable for pre-order
Aviro D20, the first gimbaled sprayer drone, delivers per-tree precision dosing to cut chemical waste and accelerate pest control for consistent, superior results.
View full specifications on Avirtech
Features
| Tree-to-Tree Precision Spraying | 6-rotor gimbaled sprayer ensures accurate spear-to-spear application with minimal chemical waste. |
|---|---|
| Efficient Coverage | 20L tank and extended 60 cm retractable hose cover up to 120 trees per flight in just 8-12 minutes. |
| Smart Flight Control | Waypoint missions with dedicated GCS, Auto RTH, and resume function streamline operations. |
| High-Performance Spraying | Single 4L/min brushless pump with jet or cone nozzles delivers droplets sized 80-200 umm at 2-4 m height. |
| Night & All-Weather Ready | FPV with night mode, built-in LED lights, and optional obstacle avoidance for safe spraying anytime. |
| RTK Precision Navigation | Integrated RTK support provides centimeter-level accuracy for consistent, reliable spraying routes. |
Performance

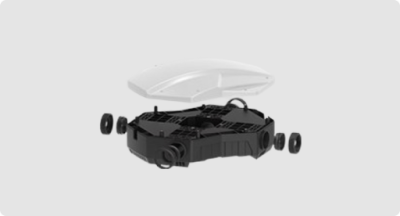

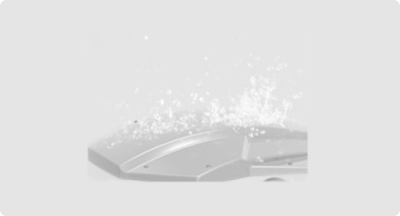

| Waterproof | Durable waterproof design ensures reliable operation and protection of key components in challenging field conditions. |
|---|---|

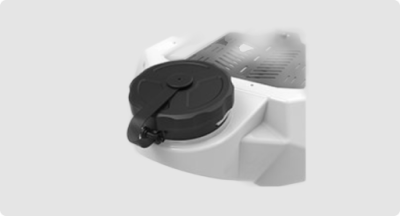

| Large Tank Inklet | Wide opening for quick refills and easy maintenance, minimizing downtime and improving spraying efficiency. |
| Gimbal-based Nozzle | Stabilized gimbal-mounted nozzle delivers consistent droplet size and accurate tree-to-tree spraying coverage. |
Technical
| Number of rotors | 6 |
|---|---|
| Spraying speed | 3 to 10 m/s |
| Diameter (unfolded) | 2350 mm |
| Spraying height | 2 to 4 meter above crop |
| Height | 750 mm |
| Spraying pattern | Tree to tree (spear to spear) |
| Tank volume | 20L liquid |
| Battery quantity | 1 x 22000 mAh 14S smart battery |
| Area efficiency per flight | up to 120 trees |
| Auto RTH and resume | Magnetic impeller pump |
| Effective working time | 8-12 minutes |
| FPV with night mode | Supported, with build-in LED lights |
| Maximum flight speed | up to 10 m/s |
| Pump quantity | Single 4L/min brushless DC pump |
| Nozzle spraying type | Jet or Cone |
| Flight mode | Waypoints with special GCS |
| Droplets size | 80 to 200 umm |
| Obstacle avoidance | Available as add-on option |
| Hose type | Extended hose (60 cm), retractable |
| RTK support | Available by default |
