Avirlink S
Avirtech
Rp0
Pre-orderAvailable for pre-order

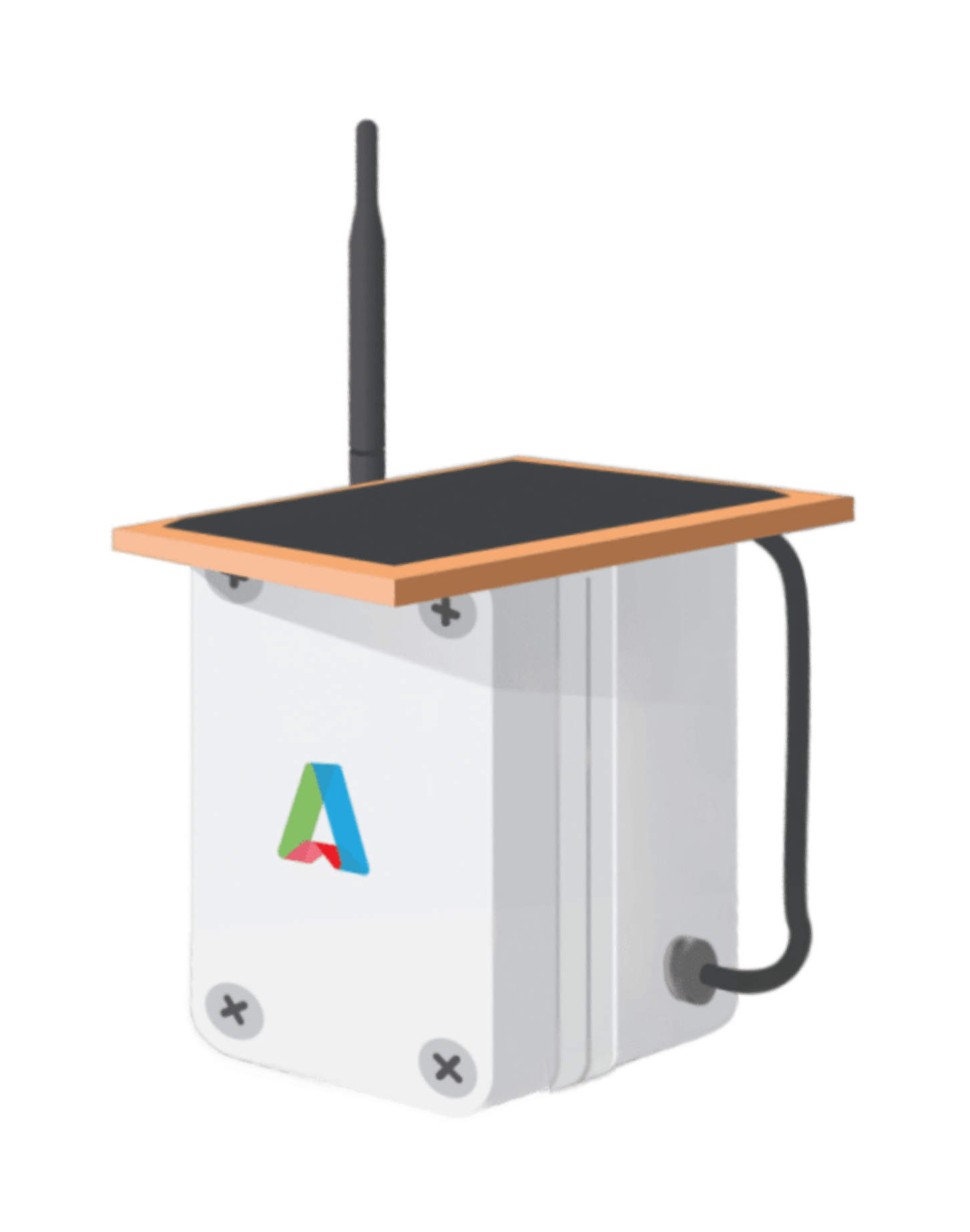

Avirlink S communication nodes make existing sensors smart, enabling remote data recording and control outdoors for years with a micro solar panel.
View full specifications on Avirtech
Capabilities
| Simple to use extension to any sensors | Supported |
|---|---|
| Multi interface module | Supported |
| Cutting edge transmission solutions | Supported |
| Easily deploy anywhere in the world with buffered delivery | Supported |
| Cost effective connectivity in a challenging area | Supported |
Communications
| IoT Satellite | Encrypted data communication (2 level 256-bit AES) |
|---|---|
| WiFi | 802.11n (2.4GHz), upto 150Mbps |
| Bluetooth | Compliant with Bluetooth v4.2 BR/EDR and BLE specifications |
Interface
| I/O - Port | 1x 3.3v, 1x 12v, max 1A |
|---|---|
| I/O - Logic level | Low (-0.3V - 0.83) - High (2.48V - 3.6V) |
| Serial port - Port | 1x RS485 |
| Serial port - Baud rate | 1200, 2400, 4800, 9600 (default), 57600, 115200 |
| Serial port - Protocol | Modbus RTU |
| Serial port - Input range | 3 - 3.6V |
| Analog input - Port | 2x Analog or 1x Differential Analog Input (switchable) |
| Analog input - Resolution | 16 Bit |
| Analog input - Input range | 2 - 5.5V |
Power supply
| Power output | 1x 3.3v, 1x 12v, max 1A |
|---|---|
| Power input | 3 - 8 VDC with 3000mAh Battery (Optional micro solar panel) |
