Avirlink L
Avirtech
Rp0
Pre-orderAvailable for pre-order

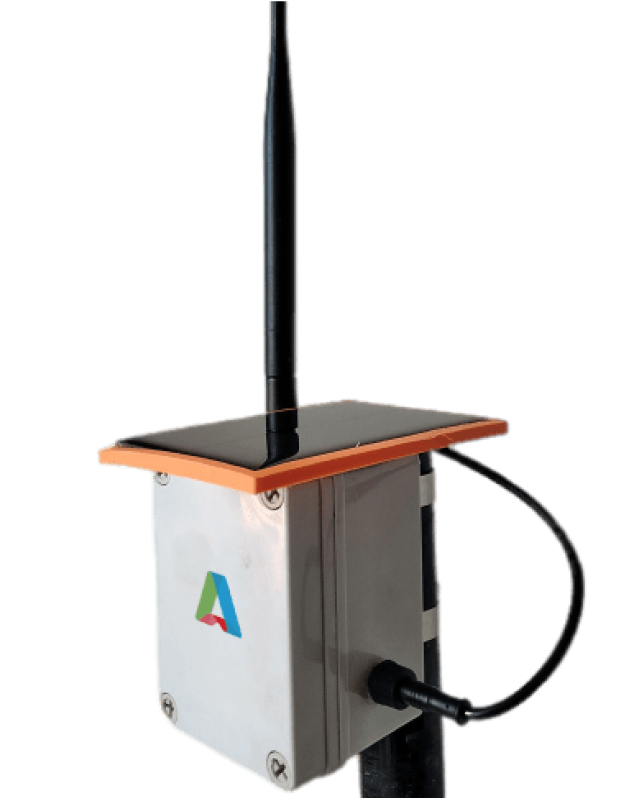

Avirlink L communication nodes are an easy-to-use extension to your existing sensors to build a communications network and make your old sensors smart by being able to record and control information remotely and can operate outdoors for several years with a micro solar panel installed.
View full specifications on Avirtech
Capabilities
| Simple to use extension to any sensors | Supported |
|---|---|
| Multi interface module | Supported |
| Cutting edge transmission solutions | Supported |
| Easily deploy anywhere in the world with buffered delivery | Supported |
| Cost effective connectivity in a challenging area | Supported |
Communications
| LoRaWAN - Frequency | EU433/CN470/IN865/EU868/RU864/US915/ AU915/KR920/AS923 |
|---|---|
| LoRaWAN - Chip | Semtech SX1276 |
| LoRaWAN - Tx power | Up to 20dBm |
| LoRaWAN - Sensitivity | -111 to -148dBm |
| LoRaWAN - Mode | ABP/OTAABm |
| WiFi | 802.11b/g/n/e/1, up to 150Mbps (802.11n) |
| Bluetooth | Compliant with Bluetooth v4.2 BR/EDR and BLE specifications |
Physical characteristic
| Dimension | 80x110x70mm |
|---|---|
| Ingress protection | IP67 |
| Operating temperature | -40 deg C to 85 deg C |
Interface
| I/O - Port | 1x GPIO |
|---|---|
| I/O - Logic level | Low (-0.3V - 0.83) - High (2.48V - 3.6V) |
| Serial port - Port | 1x RS485 |
| Serial port - Baud rate | 1200, 2400, 4800, 9600 (default), 57600, 115200 |
| Serial port - Protocol | Podbus RTU |
| Serial port - Input range | 3 - 3.6V |
| Analog input - Port | 2x Analog or 1x Differential Analog Input (switchable) |
| Analog input - Resolution | 16 Bit |
| Analog input - Input range | 2 - 5.5V |
Power supply
| Power output | 1x 3.3v, 1x 12v, max 1A |
|---|---|
| Power input | 3 - 8 VDC with 3000mAh Battery (Optional micro solar panel) |
