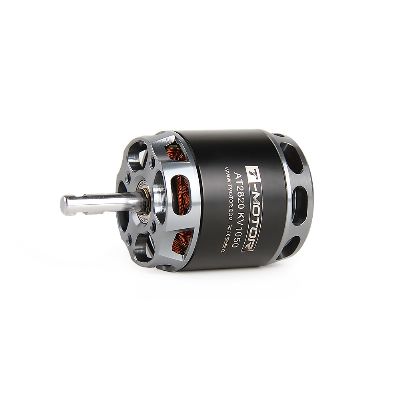

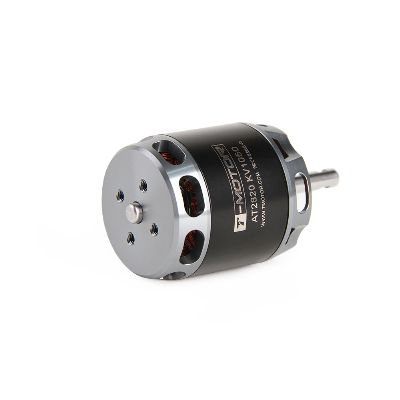

AT2820 3D F3A Fixed Wing Long Shaft Fixed Wing Uav Motor KV880

T Motor

Rp1,196,658

Available for pre-order

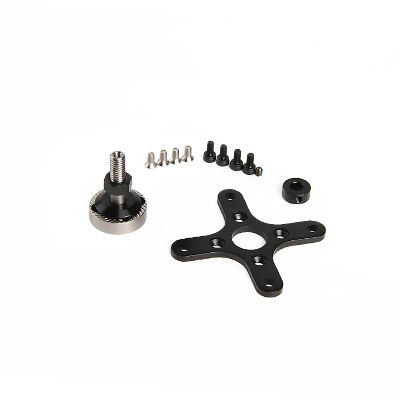

About T-MOTOR AT2820 3D F3A Long Shaft Fixed Wing Uav Motor T-Motor AT2820 is specially designed for1.4-1.6kg flyingweight 3D ,F3A and UAV fixed-wing aircraft, with biggest thrust of 3.1kg. It can support 3-4s lipos with a maximum power of 1000w. Recommend with T-Motor T12*6/T13*6.5propeller and T-Motor AT55A-75A ESC AT2820 Highlights: 1. Robust body &release freely 2. Military-grade wire & more durable 3. Anti-stripping design safety assurance 4. High torque and more durable Packing List Includes: - 1x T-MOTOR AT2820 Motor - 1x Hardware pack Specification : Test Item : Long Shaft KV880 Weight (Incl. Cable) : 139g Motor Dimensions : Φ35.2*63.5mm Internal Resistance : 39mΩ Lead : Enameled Wire100mm Configuration : 12N14P Shaft Diameter : IN：5mm OUT：5mm Rated Voltage(Lipo) : 3-4S Idle Current(10V): 1.6A Peak Current(180s) : 45A Max Power (180S) : 700W
